Design of continuous gas-lift for a dead well and step-up of its productivity

Josephine Matateyou; Kasi  Njeudjang; Eric  Donald Dongmo; Cherif Ibrahim  Rengou Mbouombouo; Hugues Vannela  Kamnang Konchipe; Gabriel  Kuiatse

doi:10.47800/PVJ.2022.06-05

Josephine Matateyou 1 Laboratory of Ore and Mineral Processing, Institute for Geology and Mining Research, 2 School of Geology and Mining Engineering, University of Ngaoundéré
Kasi Njeudjang National Advanced School of Mines and Petroleum Industries, University of Maroua
Eric Donald Dongmo College of Technology, University of Buea
Cherif Ibrahim Rengou Mbouombouo School of Geology and Mining Engineering, University of Ngaoundéré
Hugues Vannela Kamnang Konchipe African Higher Institute of Managerial and Technological Education
Gabriel Kuiatse African Higher Institute of Managerial and Technological Education

DOI: https://doi.org/10.47800/PVJ.2022.06-05

Keywords: Non-eruptive well, gas-lift, nodal analysis, PIPESIM software, production optimisation, economic evaluation

Abstract

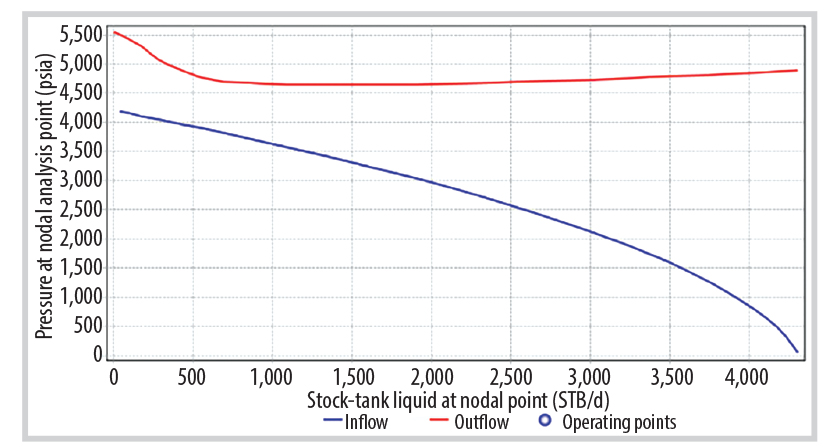

The present paper aims to design a continuous gas-lift system in order to activate the dead well X and optimise the recovery of hydrocarbons by gas injection. The data taken into account are those of the reservoir and the well. All the simulation operations and the well diagram are carried out with the PIPESIM 2017 2.0 software. Moreover, the nodal analysis of the dead well X is carried out by finding the injection pressure of the gas in the well. The number of valves to be installed, the optimal injection heights and the flow rates received by each valve are also included in the gas-lift device. Then the evaluation of the system performance as well as the sensitivity analysis are carried out to make it possible to fix the optimal flow rate of production. The results obtained show that for a continuous gas injection of 3 million standard ft³ per day (MMscf/d) per valve into the well with a wellhead pressure of 2,500 psi and an optimal flow rate of 2,718 standard barrels per day (STB/d), a profitability of USD 182,887,219 is obtained. In this field, this design can be applied to all wells having a production tube of 2.5 inches inside diameter. On the other hand, wells with different diameters will require a new evaluation.

References

Chang Samuel Hsu and Paul R. Robinson, Petroleum science and technology, 1st edition. Springer, 2019. DOI: 10.1007/978-3-030-16275-7.

Boyun Guo, William C. Lyons, and Ali Ghalambor, Petroleum Production Engineering: A computer-assisted approach. Gulf Professional Publishing, 2007. DOI: 10.1016/B978-0-7506-8270-1.X5000-2.

S. John, Forecasting oil and gas producing for unconventional wells, 2nd edition, Petro. Denver, 2018.

Michael J. Economides and Curtis Boney, “Reservoir stimulation in petroleum production”, Reservoir Stimulation, 3rd edition. John Wiley & Sons, 2000.

Frank Jahn, Mark Cook, and Mark Graham. Hydrocarbon exploration and production, Vol. 55, 2nd edition. Elsevier Science, 2008.

Jonathan Bellarby, “Artificial lift”, Well completion design, 1st edition. Elsevier Science, 2009.

Saurabh Goswami and Tej Singh Chouhan, “Artificial lift to boost oil production”, International Journal of Engineering Trends and Technology, Vol. 26, No. 1, 2015. DOI:10.14445/22315381/IJETT-V26P201.

Alan Brodie, Joe Allan, and Atholl Campbell, “Gas-lift well design”, Petroleum Technology Company, 2015.

Shahab Ayatollahi, A. Bahadori, and A. Moshfeghian, “Method optimizes Aghajari oil field gas lift”, Oil and Gas Journal, Vol. 99, No. 21, pp. 47 - 49, 2001.

Ehsan Khamehchi and Mohammad Reza Mahdiani, Gas allocation optimization methods in artificial gas-lift, 1st edition. Springer Briefs in Petroleum Geoscience & Engineering, 2017.

Ali A. Garrouch, Mohammad Al-Dousari, and Zahra Al-Sarraf, “A pragmatic approach for optimizing gas lift operations”, Journal of Petroleum Exploration and Production Technology, Vol. 10, pp. 197 - 216, 2019. DOI: 10.1007/s13202-019-0733-7.

Asekhame U. Yadua, Kazeem A. Lawal, Stella I. Eyitayo, Oluchikwu M. Okoh, Chinyere C. Obi, and Saka Matemilola, “Performance of a gas-lifted oil production well at steady state”, Journal of Petroleum Exploration and Production Technology, Vol. 11, pp. 2805 - 2821, 2021.

Mohamed A. H. Elgadban Abdalsadig, Amir Nourian, Ghasem Ghavami Nasr, and Meisam Babaie, “Gas lift optimization using smart gas lift valve”, International Journal of Mechanical and Mechatronics Engineering, Vol. 10, No. 6, pp. 1162 - 1167, 2016. DOI: 10.5281/zenodo.1125185.

Guy Vachon and Terry Bussear, “Production optimization in ESP completion with intelligent well technology”, SPE Asia Pacific Oil and gas Conference and Exhibition, Jakarta, Indonesia, 5 - 7 April 2005. DOI: 10.2118/93617-MS.

Gabor Takacs, “A critical comparison of TDH calculation models in manual ESP design procedures”, Journal of Petroleum Science and Engineering, 2020, DOI:10.1016/j.petrol.2020.108210.

Gabor Takacs, “Evaluation of ten methods used for prediction of pressure drop in oil wells”, Oil Gas European Magazine, Vol. 2, pp. 44 - 51, 1983.

Abdel BenAmara, “Gas lift - past & future”, SPE Middle East Artificial Lift Conference and Exhibition, Manama, Kingdom of Bahrain, 30 November - 1 December 2016. DOI: 10.2118/184221-MS.

Fathi Elldakli, “Gas lift system”, Petroleum & Petrochemical Engineering Journal, Vol. 1, No. 4, pp. 1 - 11, 2017.

Ali Hernandez, Fundamentals of gas lift engineering: Well design and troubleshooting, 1st edition. Gulf Professional Publishing, 2016.

E.N. Magdi, "Artificial lift technology, Dubai: advancing performance excellence, 2017.

Badr A. Mohamed, Naoko Ellis, Chang Soo Kim, Xiaotao Bi, and Ahmed El-raie Emam, “Engineered biochar from microwave-assisted catalytic pyrolysis of switchgrass for increasing water-holding capacity and fertility of sandy soil”, Science of the Total Environment, Vol. 566 - 567, pp. 387 - 397, 2016. DOI: 10.1016/j.scitotenv.2016.04.169.
